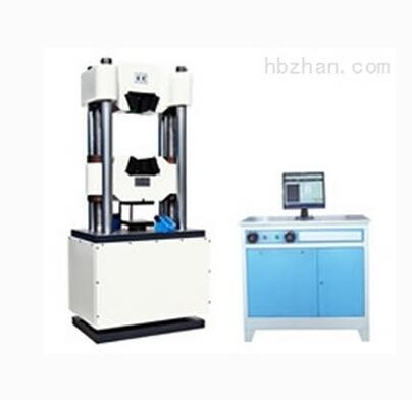

Screw tensile strength testing equipment instrument [details] screw tensile strength testing equipment for the detection of screws, bolts, screws, screws, nuts and other parts of the tensile, shear, compression mechanical properties test and analysis. Can also be in accordance with the different standards of different materials or products, tensile, compression and bending type test, tensile strength can be obtained and measured the yield strength of the material, the specified non proportional extension strength and elongation, elastic modulus, flexural strength, compressive strength and mechanical property index.

Screw tensile strength testing equipment [instrument characteristics]

1, the use of microcomputer control, the system built-in tensile, tear, peel, cord and other functions, the sensor measuring force of four files, elongation automatic tracking, stepless speed regulation, synchronous belt drive.

2, the system is built in tensile, tear, peel, cord and other functions, can enter the sample width, thickness, diameter, standard distance, the fixed rate and the length of the. During the experiment, computer display stress and elongation value, and according to the test requirements, formatted data processing, the maximum force printer after the test value, tensile strength, elongation, yield strength, peel strength, tear strength and other parameters and curves.

3, this machine is a high-precision, multi-purpose testing machine to test the mechanical properties of metal and nonmetal materials, can accurately measure the data of various physical properties of materials under tension, the standard color inkjet printer. And the limited bit protection, breakpoint stop, automatic return and other functions.

4, a new type of door frame, sensor measuring system, frequency conversion stepless speed regulation, synchronous belt drive, Taiwan electric motor, Taiwan East yuan converter. Can be used for scientific research departments, colleges and industrial and mining enterprises to carry out a variety of mechanical performance analysis and production quality inspection.

Screw tensile strength testing equipment [technical parameters]

1 maximum test force: 300KN, 600KN, 1000KN, 1500KN, 2000KN;

2 test force level: 1 /0.5;

3 testing force measurement range: 2%-100%FS;

The indication error of 4 test load is better than the value is less than or equal to 1%;

5: 1/300000FS full range resolution;

Error: less than 6 displacement better than the value of 1%;

7 piston maximum moving speed: 70mm/min;

8 beam adjustment speed:: 120mm/min;

9 piston Max stroke: 250mm;

10 effective tensile space: 650mm;

11 effective compression space: 550mm;

12 column spacing: 540mm, 600mm, 650mm, 750mm, 800mm;

13 clamping mode: manual or hydraulic automatic clamping;

14 circular sample clamping range: 6- Phi Phi 26mm, Phi 6- Phi 40mm, Phi 13- Phi 60mm, Phi Phi Phi Phi 26- 70mm, 26- 80mm;

15 round sample holder range: 0-30mm, 0-40mm, 0-50mm, 0-60mm;

16 main engine size: 820 x 570 x 2000mm, 945 x 654 x 2186mm, 1010 x 750 x 2225mm, 1200 x 1050 x 2860mm;

17 oil source control cabinet size: 960 x 630 x 900mm;

18 host weight: about 1900KG, 2600KG, 4000KG, 5600KG, 7500KG;

Screw tensile strength testing equipment [related standards]

1, GB/T2611 "test machine general technical requirements"

2, GB228 "metallic materials at room temperature tensile test method"

3, GB/T232 "metal bending test method"

4, GB/T7314 "metal materials at room temperature compression test method" and other standards.

Screw tensile strength testing equipment [features]

A. test standard modular function: integrated user set the required testing standard setting, drawing, drawing circle (including pipe), tearing, peeling, curtain line, canvas, etc..

B. test data: to provide users to set the test data, there are width, thickness, diameter, area, distance, etc..

C. report forms: multi data print multi curve contrast, provide the median value, take the average, for the test of choice

D. graphics curve scale automation Scale Auto, graphics can be displayed on the scale.

E. the end of the test automatically archived test is completed automatically calculate the maximum strength, yield strength, tensile strength, compressive strength, elongation and strength at any point at any point of constant load elongation, elongation, peeling strength and so on.

F. display: 8 LED digital tube display.

G. control system: the use of external control to make the control more accurate, speed control range mm/min 5~200. Intermediate plate with fast coarse adjustment and slow adjustment function. Automatic return, automatic storage.

H. safety device: overload emergency stop device, up and down stroke limit device, automatic breakpoint stop function

Tensile testing equipment for screw [working conditions]

1, at room temperature 10 degrees -35 degrees Celsius, the relative humidity is not more than 80%;

2, in a solid foundation or working platform, the correct installation;

3, in the absence of vibration in the environment;

4, around the non corrosive medium;

5. The fluctuation range of the power supply voltage should not exceed 10% of the rated voltage;

6, the test machine power supply should be reliable grounding frequency fluctuations should not exceed 2% of the rated frequency.

Screw tensile strength testing equipment [configuration list]

One

Up and down fixture mounting seat.

Two

Touch down rod and setting ring

Three

Beam: up and down movement

Four

Large deformation extensometer: plastic, rubber, metal deformation measuring device

Five

T type lead screw driving device in Nanjing

Six

To provide a stable driving, the AC motor, reliable driving speed

Seven

AC variable speed system with Taiwan East element converter

Eight

Multi functional micro control data acquisition system, EPSON color inkjet printer (laser printer to buy

Nine

High precision S type electronic sensor

Ten

One side (the rest: standard fixture fixture optional)
