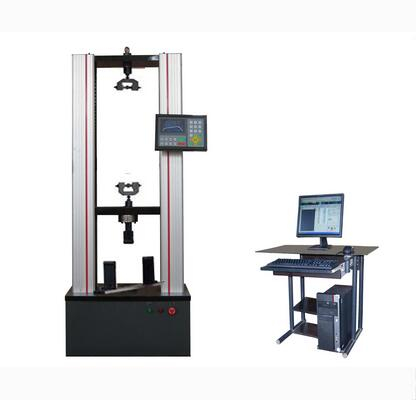

5T electronic universal testing machine [mechanical description] this machine adopts the advanced mechanical and electronic PCI acquisition card and computer technology will load the whole process of the test specimen to withstand the relationship between time and variable displacement and walked with the form of record curve down to nature research materials or manufacturing process quality control and so on.

The liquid crystal display design, electronic tensile testing machine with absorption control technology and the appearance of foreign advanced test equipment design, the machine has beautiful appearance, convenient operation, stable and reliable performance. This machine adopts full digital speed regulating motor and the full digital speed control system as the drive device, the arc synchronous belt and synchronous belt wheel deceleration system drive after the precision screw loading. The machine has no pollution, low noise, high efficiency, wide speed range. This machine is suitable for testing the mechanical properties of all kinds of metal, nonmetal and composite materials. It is in full compliance with the requirements of the relevant national standards.

5T electronic universal testing machine [main function]

1 the equipment can be used to test and analyze the mechanical properties of all kinds of metal, nonmetal and composite materials.

2 the equipment according to the GB, ISO, JIS, ASTM, DIN, JG, JT and other international standards and industry standards for the tensile and compression, bending, shearing, peeling, tearing, piercing, bursting test.

3 the equipment can detect the parameters such as maximum strength, tensile strength, yield strength, bending strength, compressive strength, elongation, elongation, non proportional strength, elastic modulus and so on.

4 this equipment has the stress, strain, displacement three closed loop control mode, connect the computer printer to realize all computer control and print standard test report.

5 by the windows operating system to make the test data curve dynamic display, test data can be added to the curve, easy to operate. Can be relaxed. Whenever and wherever possible curve traversal. Stack separation. Zoom print full electronic display monitor.

6 mechanical limit protection, overload protection, over current protection, leakage protection and other functions.

5T electronic universal testing machine [host specifications]

* force resolution: 1/200000, the sampling frequency is 400 times per second;

It shows the value of force accuracy: 0.1% (20 ~ 100%FS);

* displacement resolution: photoelectric encoder, up to 0.001mm;

* speed accuracy: showing the value of less than 1%;

This single test, 10 manual statistics, and automatically calculate the average value of fracture;

You fit a variety of grating encoder, pulse number range: 100~65535;

Automatic reset function;
